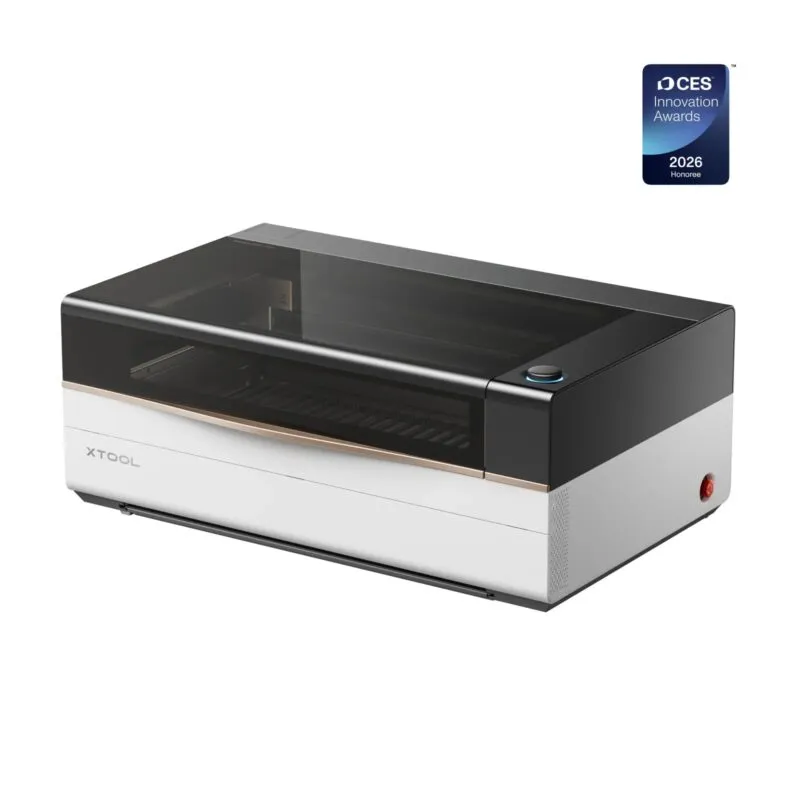

xTool P3 — 80W Flagship CO2 Laser Cutter with Intelligent Automation

The Flagship — When Desktop Meets Production

The xTool P3 is built for those who outgrew hobby machines. With an 80W CO₂ laser and a work area of 915 × 458 mm, it cuts 20 mm basswood and 25 mm acrylic while fitting on a workbench. Dual cameras, a lifting platform, and intelligent automation make batch production as simple as a single piece.

Intelligent Automation — No Manual Adjustment

ACS automatic focus measures the material and sets the focal distance automatically. A 16 MP distant-view camera gives you a full-bed view for precise placement, while a 5 MP close-view camera delivers 0.2 mm positioning accuracy. Two additional cameras monitor the job and detect flames in real time. Set up once, run unlimited batches.

What the P3 Cuts and Engraves

• Wood: up to 20 mm basswood, plywood, MDF — clean cuts, no charring
• Acrylic: up to 25 mm — polished edges, deep engraving
• Fabric, leather, felt — precision cutting for fashion and upholstery
• Paper, cardboard — intricate patterns, packaging
• Coated metals, anodized aluminum — surface marking with the optional 5W IR module

P3 Highlights

• ⚡ Up to 1,200 mm/s processing speed
• 📐 915 × 458 mm work area (2.3× larger than the P2S)
• 📷 Four cameras — 16 MP panoramic + 5 MP close-view (0.2 mm) + two monitoring/flame-detection cameras
• 🔧 Lifting platform — up to 220 mm vertical clearance for thick materials
• 💡 Optional 5W IR module — add metal-marking capability
• 🖥️ Driven by xTool Studio — full control from desktop software

Technical Specifications

Laser	80 W CO₂, 10.6 µm (10,600 nm), tube life ≈ 10,000 h
Work area	915 × 458 mm (36.02″ × 18.03″)
Processing height	220 mm (manual mode) / 180 mm (auto mode)
Max. speed	up to 1,200 mm/s
Processing accuracy	0.01 mm
Cameras	16 MP distant-view + 5 MP close-view + 2 monitoring/flame cameras
Focus	ACS automatic focus (auto measure 0.5 mm)
Air assist	up to 30 L/min, 200 kPa
Noise	≤ 65 dB (≤ 68 dB with filtration)
Laser safety class	Class 1 (Class 4 with conveyor feeder)
Software	xTool Studio (PC)
Power	100–240 V AC, 50/60 Hz
Dimensions / weight	1,250 × 808 × 496 mm / 105 kg
Connectivity	USB, Wi-Fi, Ethernet

GravingX is the official xTool distributor for Slovenia, Croatia, and the EU. Delivery in 3–7 business days.

Frequently Asked Questions

What is the xTool P3 80W CO₂ laser cutter?

The xTool P3 is a flagship professional 80 W CO₂ laser cutter and engraver with a 915 × 458 mm work area, ACS automatic focus, and four cameras for positioning and flame detection. It cuts and engraves wood, acrylic, leather, fabric, MDF, paper, and other non-metal materials, and marks coated metals with the optional 5 W IR module.

How thick can the xTool P3 cut?

In a single pass the P3 cuts up to 20 mm of wood (basswood, plywood) and up to 25 mm of transparent acrylic. Thicker or denser materials may need multiple passes.

What is the work area of the xTool P3?

The P3 has a 915 × 458 mm (36.02″ × 18.03″) work area and up to 220 mm of vertical clearance (180 mm in auto mode), so it handles large-format and tall workpieces.

Which software does the xTool P3 use?

The P3 is controlled with xTool Studio on a PC. The optional 5 W infrared module adds metal marking.

Does the xTool P3 need ventilation?

Yes. CO₂ laser cutting produces smoke and fumes, so a compatible air-filtration system (e.g. xTool SafetyPro) or external ventilation is required for safe indoor use.
